CJ-3A Starters and Controls

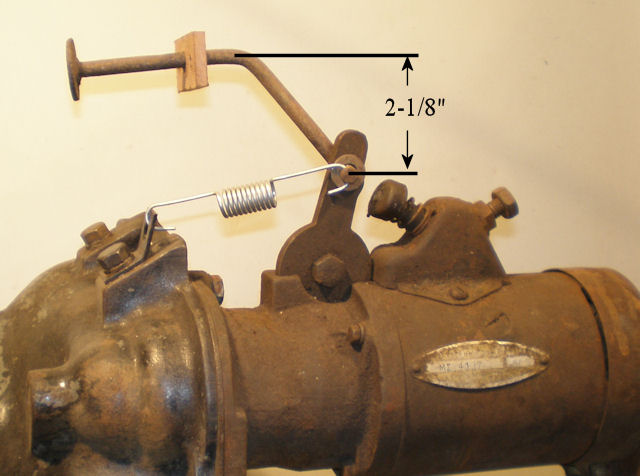

 Early CJ-3A Starter

Part Number	Description	Quantity
MZ 4137	Auto-Lite Starter	1
647940	Block, Starter rod to dash	1
647939	Clip, starter rod retracting spring	1
647941	Rod, starter, assembly	1
646627	Spring, retracting, starter control arm	1
52274	Washer, plain, 5/16" (starter rod to starting motor)	2

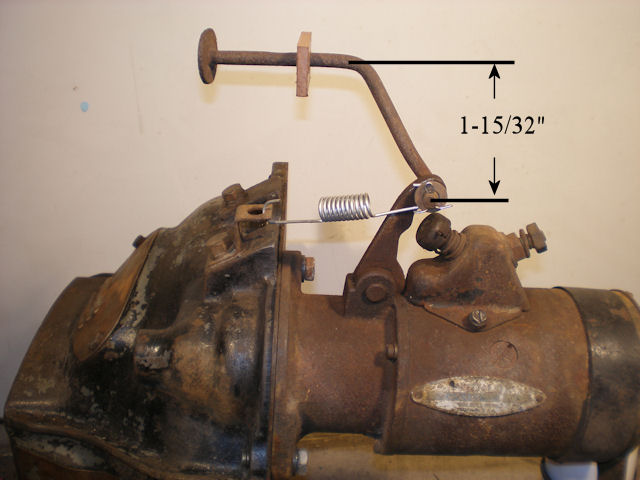

Mid CJ-3A Starter

Part Number	Description	Quantity
MZ 4162	Auto-Lite Starter	1
647940	Block, Starter rod to dash	1
800244	Clip, starter rod retracting spring	1
801170	Rod, starter, assembly	1
646627	Spring, retracting, starter control arm	1
52274	Washer, plain, 5/16" (starter rod to starting motor)	1
GM-103372	Pin, cotter 3/32" x 1/2"	1

The change from the early arrangement to the mid arrangement was made about mid-1950. The starter rod changed at the same time as the starter but the spring clip and cotter pin change was slightly later. The starter retracting spring has 12 coils of 0.067 diameter spring wire with a free length of 3-5/16". The Late CJ-3A starter (not shown) was key activated. Thanks to Keith Buckley for his help with this webpage.
